ULTRA Series Bandpass Filters

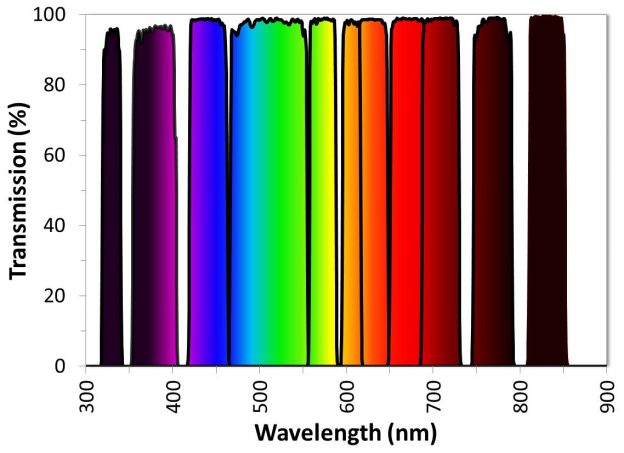

Figure 1. A variety of ULTRA Series bandpass filters showing high transmission from the UV to the IR.
Through a combination of precision wavelength control, ultra-steep edges, deep blocking, and the industry's highest transmission levels, Alluxa’s ULTRA Series of thin-film optical bandpass filters will optimize the performance of a variety of optics based instruments.
Depending on the wavelength ranges and requirements of your system, ULTRA Series bandpass filters can be custom designed to meet one or more of the following challenging specifications:
- Up to 99% transmission for passbands in the visible range
- Up to OD10 wide range out of band blocking by design
- Edge transitions as steep as 0.5% of CWL from 50% T to OD6
- CWL at any wavelength from the UV to the mid IR (~250 nm to 6.2 µm)
- Tolerances as tight as ± 0.25% of CWL
- TWE as low as 0.01 wave RMS / inch measured at 632.8 nm
Multiband filters for fluorescence applications

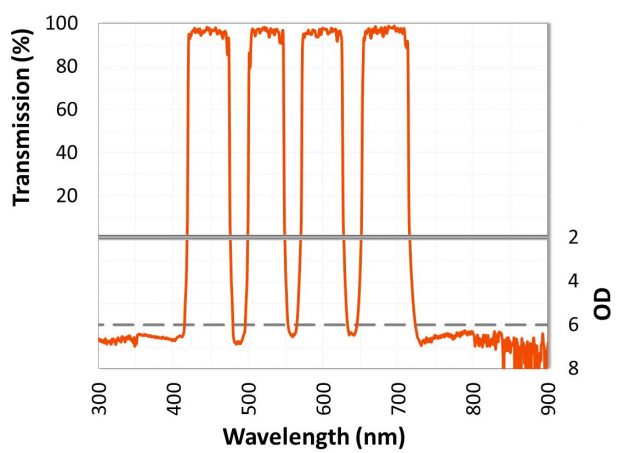

Figure 2. ULTRA Series multiband filter with steep edges, high transmission, and OD6 out-of-band blocking.
ULTRA Series multiband filters can be designed with over 10 transmission bands, greater than OD8 blocking between bands, steep edges, and up to 98% transmission. They are perfect for use as excitation or emission filters in fluorescence techniques that require the simultaneous detection of multiple fluorophores in a single sample.
Quality and consistency from an innovative thin-film coating process

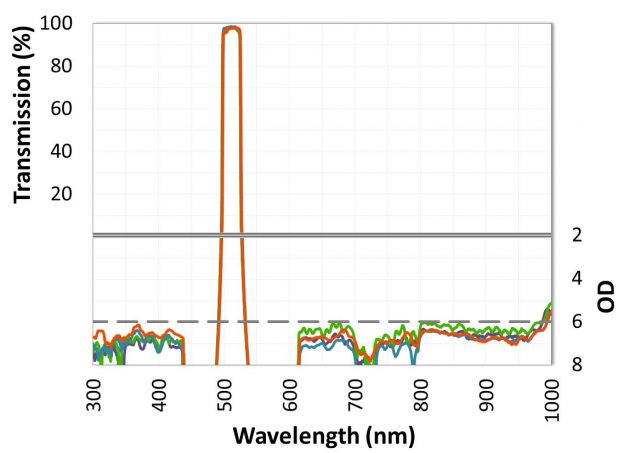

Figure 3. The wavelength control, transmission, and blocking of ULTRA Series filters are highly repeatable over several different coating runs.
Alluxa thin-film optical filters and dielectric mirrors are all hard-coated using our SIRRUS™ plasma deposition process on equipment that was designed and built by our team. This allows us to reliably and repeatedly produce the same high-performance thin-film bandpass filters over several different coating runs, which translates to consistent performance across all of your systems.
